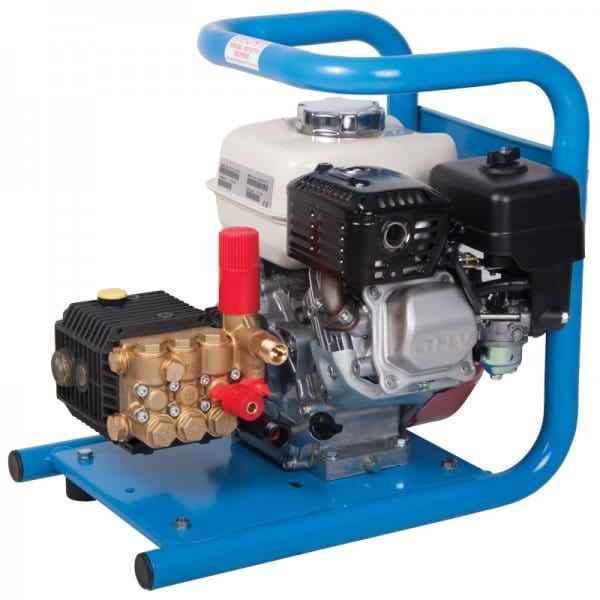

Evolution 1 Honda GX160 Pressure Washer - 10lpm - 135bar - Direct Drive Pump

Up to 20% off
  • Fuel
  • 10 LPM
  • 135bar
Regular price £719.46 GBP £863.35 GBP ex VAT inc VAT
Sale price £719.46 GBP £863.35 GBP Regular price £899.32 GBP £1,079.18 GBP ex VAT inc VAT

Delivery

Confirm delivery lead time

Ask our team for the current delivery estimate.

Collect in store

Confirm collection lead time

Ask our team to check store availability.

Free collection · Dronfield
Need a hand choosing?

CCM CUSTOMER SUPPORT

Ask our team

Evolution 1 Honda GX160 Pressure Washer - 10lpm - 135bar - Direct Drive Pump

Tell us what you need help with. We’ll include this product with your enquiry.

We’ll use these details to respond to your enquiry.

About this product

Powered by the ultra reliable Honda GX160, the Evolution 1 is powerful enough to deal with the some of the toughest domestic cleaning duties. Weighing in at just 24kg, the powder coated carry frame allows it be easily manoeuvred between jobs. Coupled with the Honda GX160 is the Interpump 51 Series pump, a powerful direct drive triplex style, oil lubricated pump that runs at 135 bar / 1958 psi, with a flow rate of 10 LPM.

NOTE: this pressure washer can suck water from a tank. It is supplied with a 3m long suction hose and filter.

  • 135 Bar - 1958 psi
  • 10 Lpm
  • Interpump 51 series pump
  • Honda GX160 petrol engine
  • 3400 Rpm direct drive pump
  • Integrated controlset & bypass
  • Integrated chemical injector
  • Powder-coated carry frame
  • Two-piece lance assembly
  • 8m high pressure hose
  • 3m suction hose & filter
    Specifications

    Pressure washer specifications

    • 135 Bar - 1958 psi
    • 10 Lpm
    • Interpump 51 series pump
    • Honda GX160 petrol engine
    • 3400 Rpm direct drive pump
    • Integrated controlset & bypass
    • Integrated chemical injector
    • Powder-coated carry frame
    • Two-piece lance assembly
    • 8m high pressure hose
    • 3m suction hose & filter

    Pump Specifications

    • 10 Lpm
    • Up to 150 Bar
    • 3400 Rpm
    • 4.0 Hp, 2.94 kW
    • 3/4" hollow shaft
    • Brass manifold, integrated valve
    • VH trapped pressure unloader valve
    • Integrated chemical injector
    • C flange for SAE J609 A ext3 engines
    • 1/2"BSP female inlet
    • M22 male outlet

    Lance Specification

    • BIT105 gun + extension
    • 550mm split lance
    • Variable angle, Hi-Lo pressure head
    • 1.35mm (035) jet
    • 150 Bar max pressure
    • 21 Lpm max flow
    • 60°C max temperature
    • 1/4"BSPM inlet
      Supplied With
      • Two-piece lance assembly
      • 8m high pressure hose
      • 3m suction hose & filter

      Specifications

      Chemical injector
      Integrated
      High pressure hose
      8m high pressure hose
      Suction hose
      3m suction hose & filter
      Rotational speed
      3400 Rpm
      Inlet
      1/2"BSP female
      Outlet
      M22 male
      Max temperature
      60°C
      Inlet
      1/4"BSPM
      Power source
      Fuel
      Flow rate
      10 LPM
      Pressure
      135bar
      Style
      Commercial, Domestic
